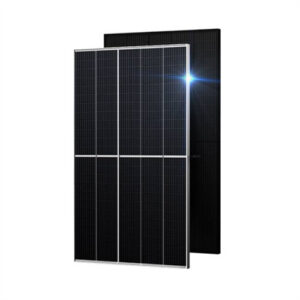

36cells monocrystalline solar panel uses high-efficiency monocrystalline solar cells, which can provide the most cost-effective solutions for off-grid / on-grid systems with 150 ~ 170W power.
It can be widely used in photovoltaic rooftop solar off-grid systems for commercial/industrial buildings, residential photovoltaic rooftop solar off-grid systems, residential solar photovoltaic rooftop off-grid systems, any commercial/industrial ground installation off-grid systems, and other off-grid solar photovoltaic industrial and commercial applications.
| Module Type | HR150M | HR155M | HR160M | HR165M | HR170M |
|---|---|---|---|---|---|
| Maximum Power-Pmax(w) | 150.00 | 155.00 | 160.00 | 165.00 | 170.00 |
| Open Circuit Voltage-Voc(V) | 22.60 | 22.70 | 22.80 | 23.10 | 23.30 |
| Short-Circuit Current-Isc(A) | 8.80 | 9.05 | 9.29 | 9.53 | 9.71 |
| Voltage at Pmax-Vmp(V) | 18.40 | 18.50 | 18.60 | 18.70 | 18.90 |
| Current at Pmax-lmp(A) | 8.15 | 8.38 | 8.60 | 8.82 | 8.99 |
| Module Efficiency -ηm(%) | 15.10 | 15.60 | 16.11 | 16.61 | 17.11 |
| STC: Irradiance 1000W/㎡, Cell Temperature 25℃, Air Mass 1.5 | |||||
| Power Tolerance(W) | (0,+4.99) | ||||
| Maximum System Voltage(V) | 715 | ||||
| Maximum Series Fuse Rating(A) | 20 | ||||
| Temperature Characteristics | |||||
| Pmax Temperature Coeffcient | -0.004 | ||||
| Voc Temperature COffcient | -0.0032 | ||||
| lsc Temperature COffcient | 0.0005 | ||||
| Operating Temperature | -40～+85℃ | ||||
| Nominal Operating Cell Temperature(NOCT) | 45±2℃ | ||||
| Mechanical Specifications | |||||
| External Dimensions | 1480*670*35mm | ||||
| Weight | 11kg | ||||
| Mono Solar Cells | 156.75×156.75mm （36pcs） | ||||
| Front Glass | 3.2 mm tempered glass, low iron | ||||
| Frame | Anodized aluminum alloy | ||||
| Junction Box | IP67 | ||||
| Mechanical Load | 5400Pa | ||||
| Packing List | |||||
| Carton Dimensions | 1515×1110×689mm | ||||
| Pallet Dimensions | 1525×1120×830mm | ||||
| Pallet Weight | 380kg | ||||
| Pieces per Pallet | 30（5pcs/carton） | ||||
